1964 Dodge Dart – Triple20
FollowVehicle Quick Facts
Profile ID: 49794
Year: 1964
Make: Dodge
Model: Dart
Markets: Muscle Car, Performance, Racing, Resto-Mod, Rod & Custom
Vehicle Type: American
Contact: Kuhnhausen Metal Concepts LLC
Vehicle Story

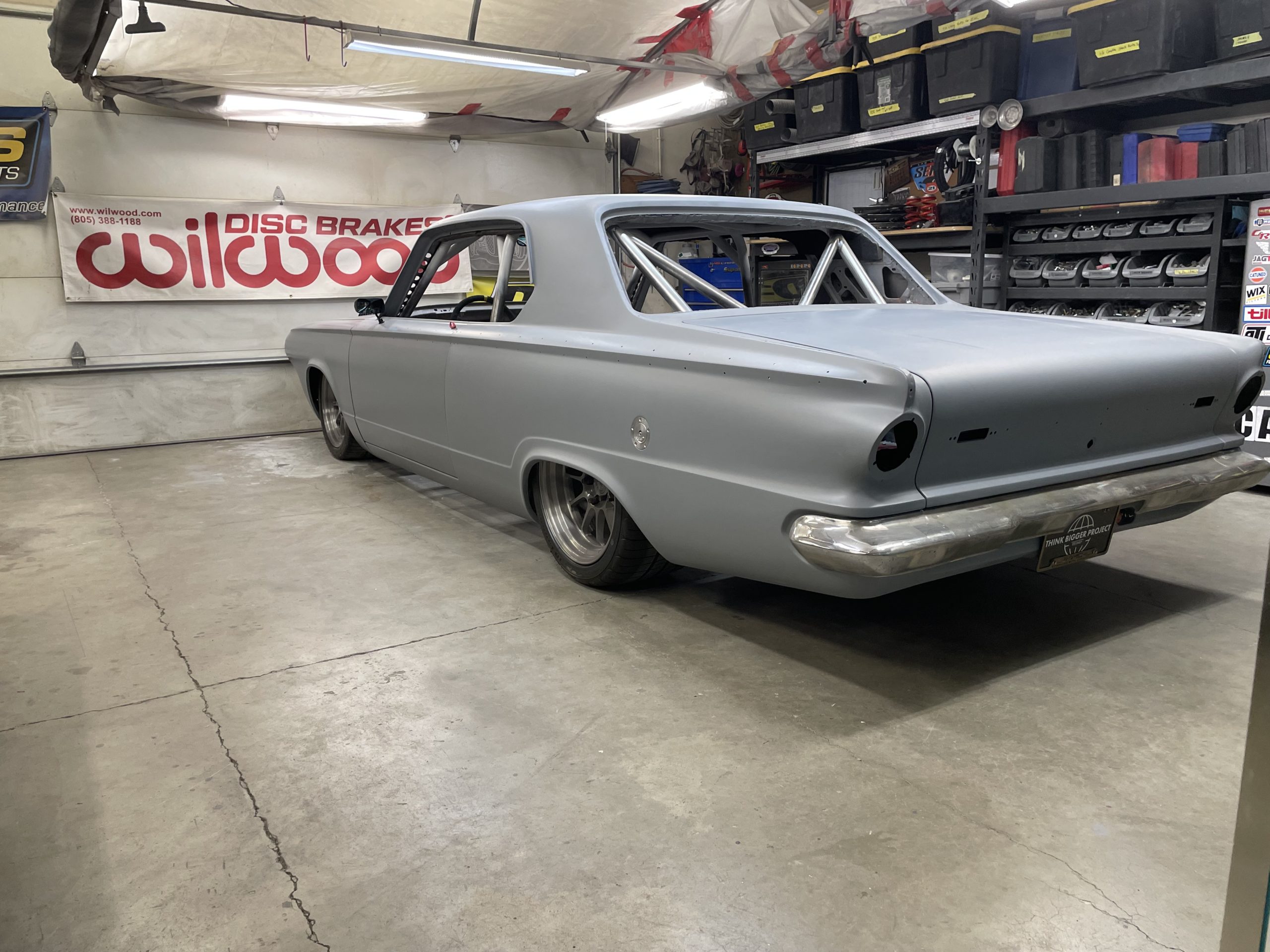

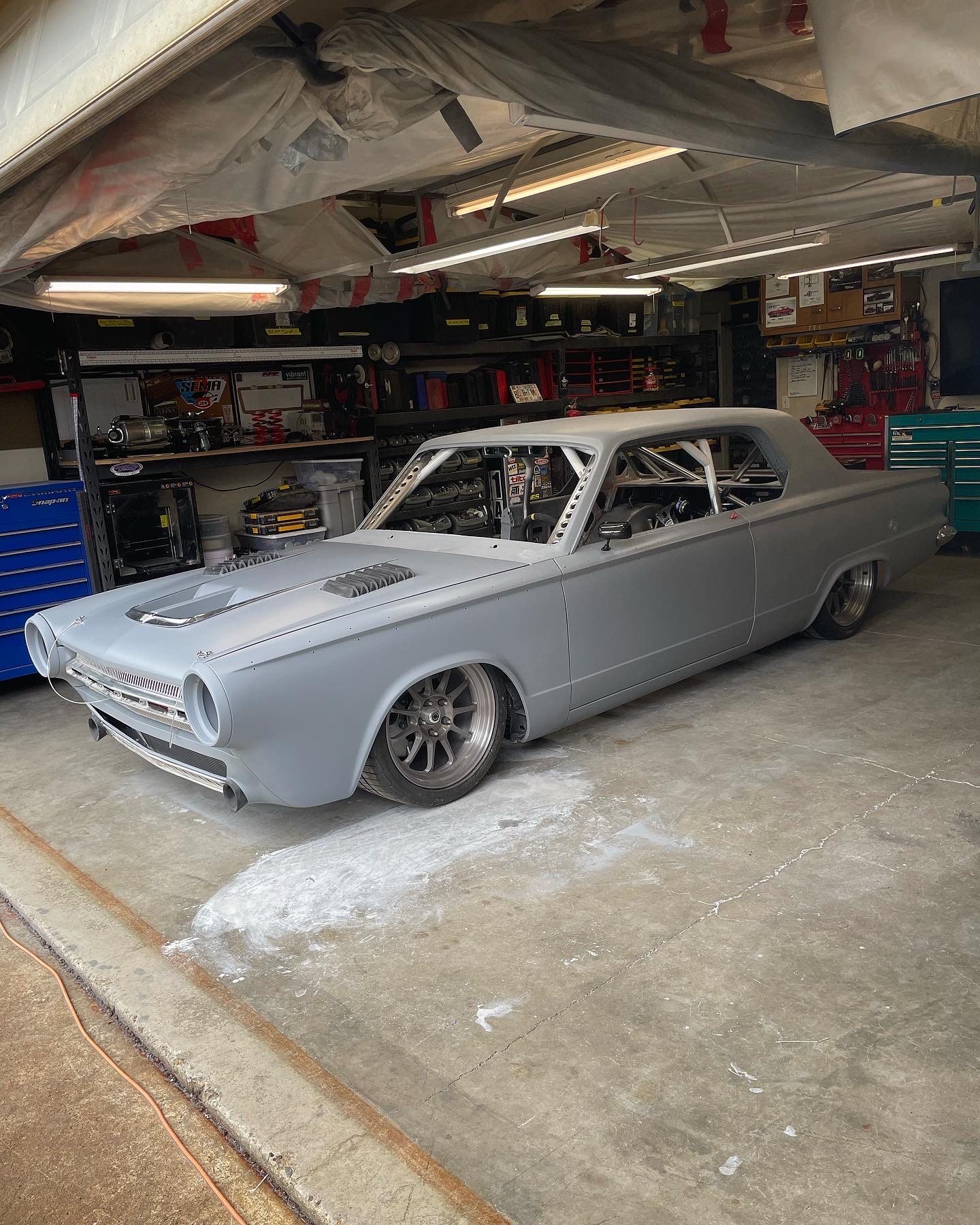

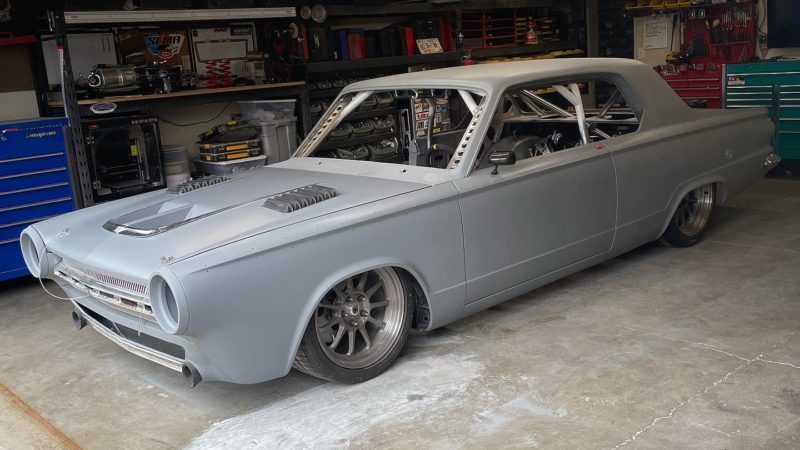

A build spanning several generations. My grandpa Harold ordered this 1964 Dodge Dart GT Golden Anniversary edition new for my grandma Alma in 1964 with a manual 4 speed transmission and a 273 ci. V8; it has remained in the family since (and has even been submerged in Flathead Lake, NW Montana at one point…). Fast forward 61 years to present day 2025, my dad Cris and I are retooling the family Dart into a road racer with license plates to compete in as many events together as possible with my late grandma and grandpa with us in spirit.
Build Specs (shorthand):

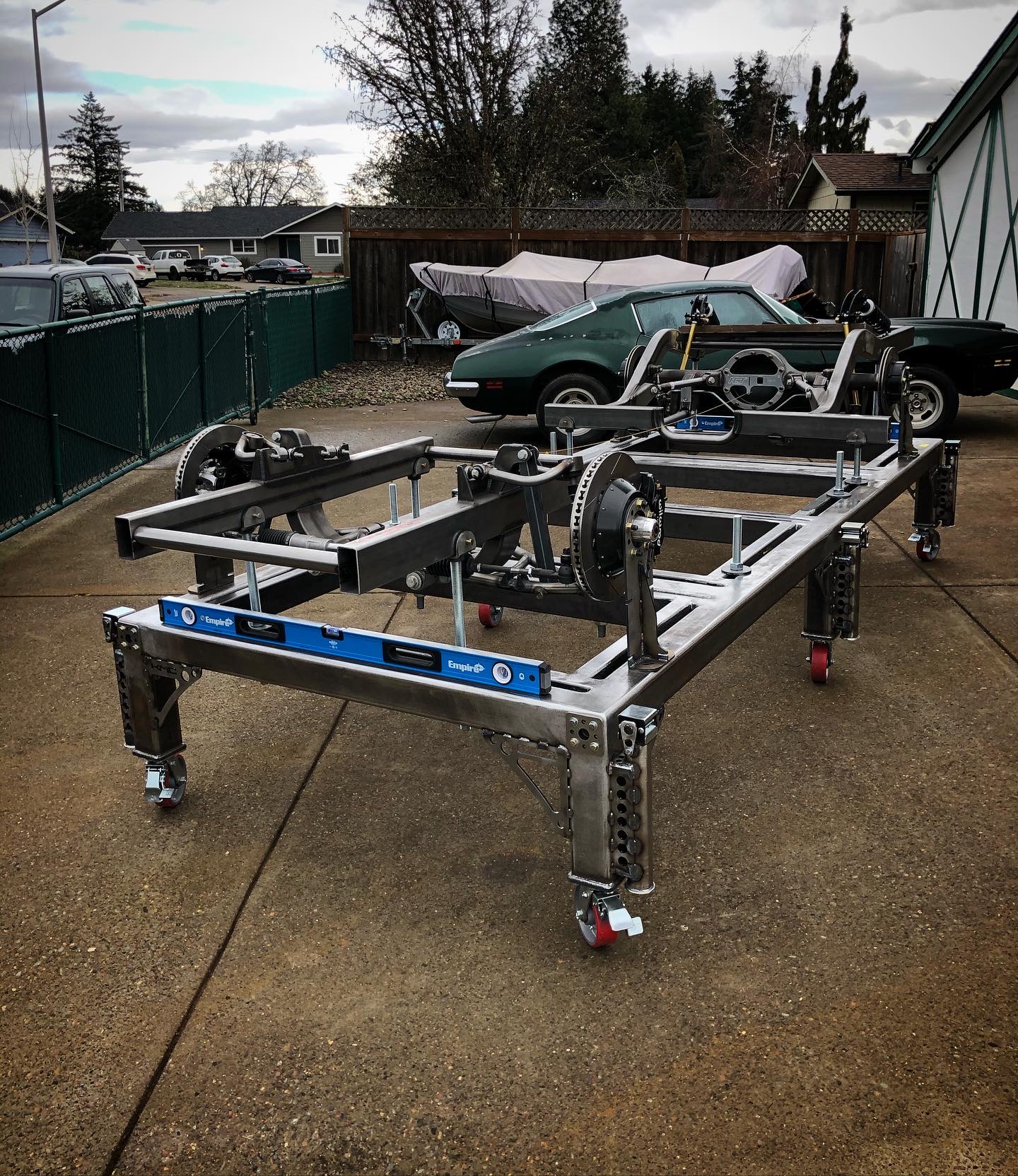

- Art Morrison custom spec front and rear frame clips, with double wishbone layout and extra narrow front rails for wide tire clearance, triangulated 4 link rear suspension narrowed for extra wide tires.
- Ford 9" rear axle housing with aluminum strange carrier.
- KMC engineered pushrod suspension with adjustable motion ratio rockers.
- Speedway Engineering adjustable splined sway bar with blade adjustable arms.
- Wilwood 14” AERO 6 piston front disc brakes and floating metric caliper rear brakes, BP30 compound race pads, Tru-Bar pedals with cabin mounted reservoirs and bias adjustment, separated rear hydraulic hand brake.
- 18”x11” front BC Forged TD01 wheels with 315/30zr18 tires, 18”x12” rear wheels with 335/30zr18 tires
- Bfgoodrich G-force Rival S tires
- KMC through-frame brake ducting with bespoke rotor hats, and 3d printed ducts

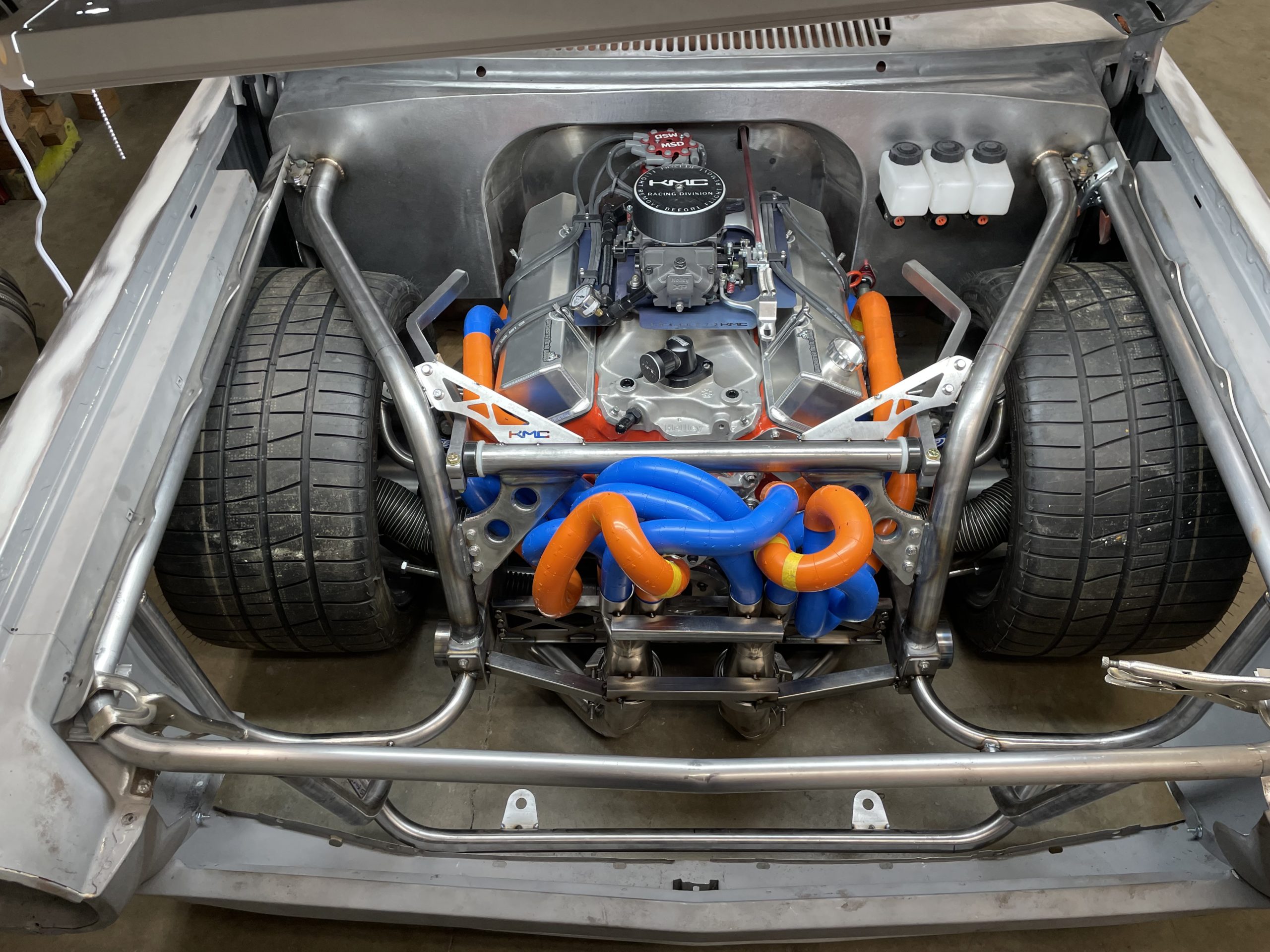

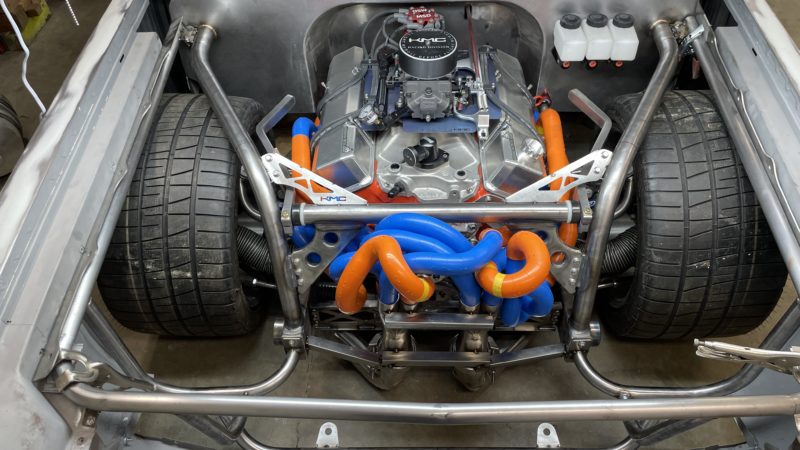

- GM Crate LS3 525HP mounted behind front wheel centerline (front mid-mounted)

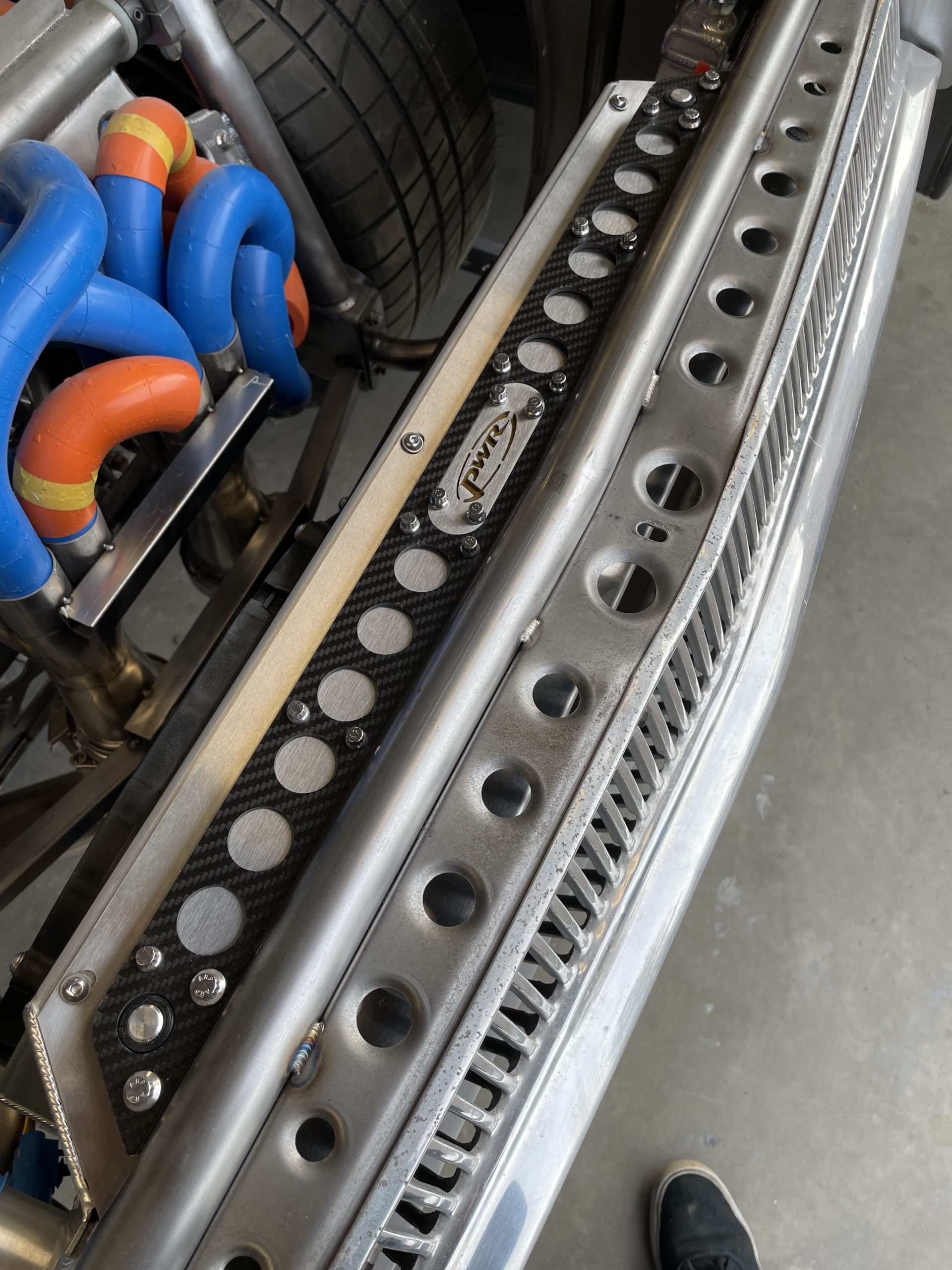

- PWR Custom Spec. full cooling package
- Dodge Viper Tremec T56 six speed manual transmission.

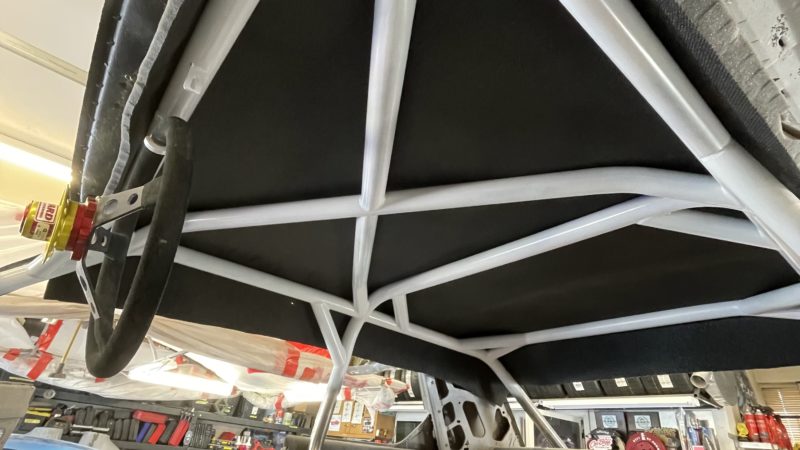

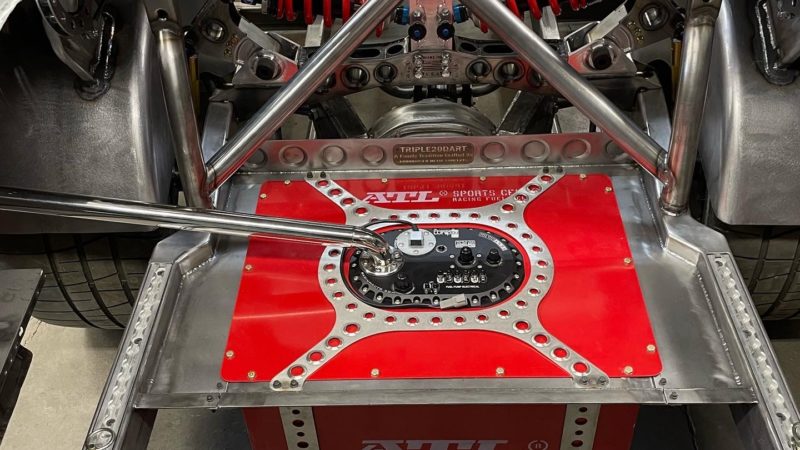

- Roll cage with front/rear strut attachments, and 6-point harnesses

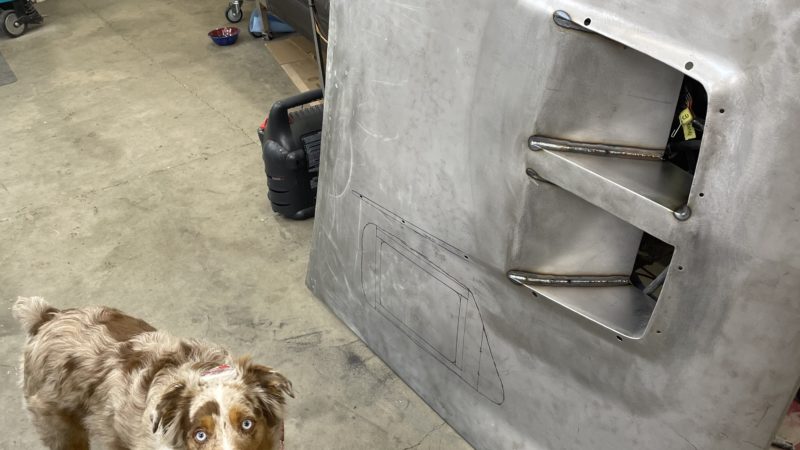

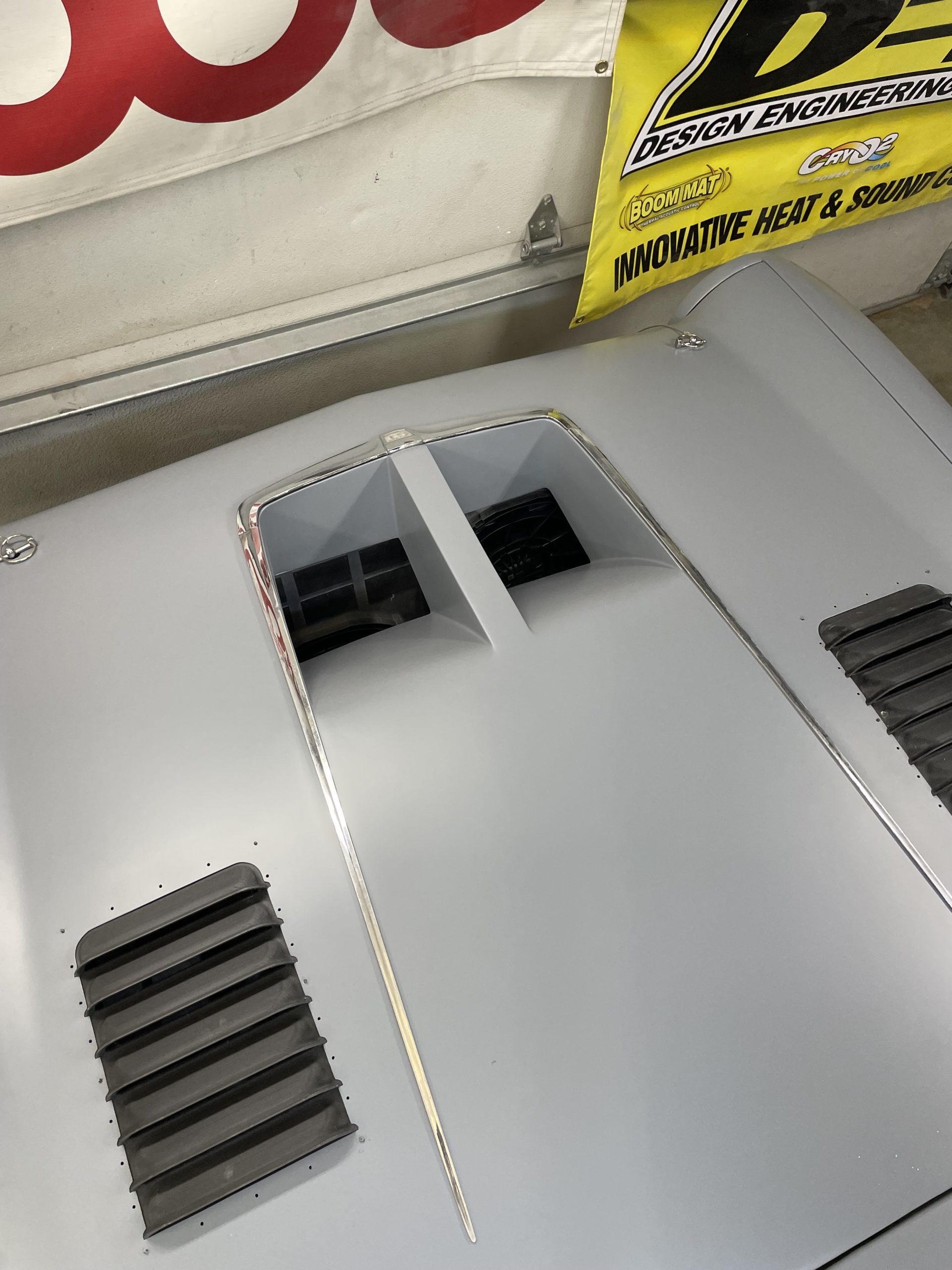

- Heat extraction ducting through hood
- Front bumper deleted with radiator air-ducting and road-race front sheet metal modifications. Hidden LED light bar behind grill.
- Air Jacks with frenched roll pan lance port
- 180 degree headers with oval exhaust
Wish List:
- 3-5 stage Dry Sump Oiling System
- Rear Axle 35 spline floater conversion with posi traction device
- Tremec t56 Super Magnum with SFI Belhousing and twin disc clutch
- Delta ABS system
- Carbon Fiber Driveshaft
- JRI Hydraulic lift system with double adjustable shocks
- Holley Mid-Mount accessory drive
- Motorsport grade electronics with data logging capacity: ECU, PDM, Mill spec harnesses
- Interior package: seats, harnesses, etc.
- Fire Suppression
Tech Sheet
Chassis
- Links/Kits:
Art Morrison Enterprises
- Brake Calipers:
- Wilwood Disc Brakes
- Brake Rotors:
- Wilwood Disc Brakes
- Brakes:
- Wilwood Disc Brakes
- Coilovers:
- JRI Shocks
- Control Arms:
- Art Morrison Enterprises
- Fasteners:
- ARP – Automotive Racing Products
- Frame:
- Art Morrison Enterprises
- IFS:
- Art Morrison Enterprises
- :
- Flaming River Industries
- Shocks:
- JRI Shocks
- Spindles:
- Wilwood Disc Brakes
- Suspension Kit:
- Art Morrison Enterprises
Drivetrain
- Bellhousing:
- Quick Time
- Fasteners:
- ARP – Automotive Racing Products
- :
Engine
- Battery:
- Antigravity Batteries
- Camshaft:
- Crower
- Carburetor:
- Holley Performance Products
- Distributor:
- MSD Performance
- Exhaust Mufflers:
- MagnaFlow
- Fans:
- Spal Automotive USA
- Fasteners:
- ARP – Automotive Racing Products
- :
- XRP, Inc.
- Fuel Lines:
- XRP, Inc.
- Heat Barrier:
- Intake Manifold:
- Holley Performance Products
Exterior
- Car Care Products:
- Mothers Polish
- Weather Stripping:
Interior
- Sound Dampening:
Shops
- 3D Printing:
- Kuhnhausen Metal Concepts LLC
- Cage Fab:
- Kuhnhausen Metal Concepts LLC
- Chassis Fab:
- Kuhnhausen Metal Concepts LLC
- Fiberglass:
- Kuhnhausen Metal Concepts LLC
- Sheet Metal Fab:
- Kuhnhausen Metal Concepts LLC
- Shock Tuning:
- Ultimate Performance
